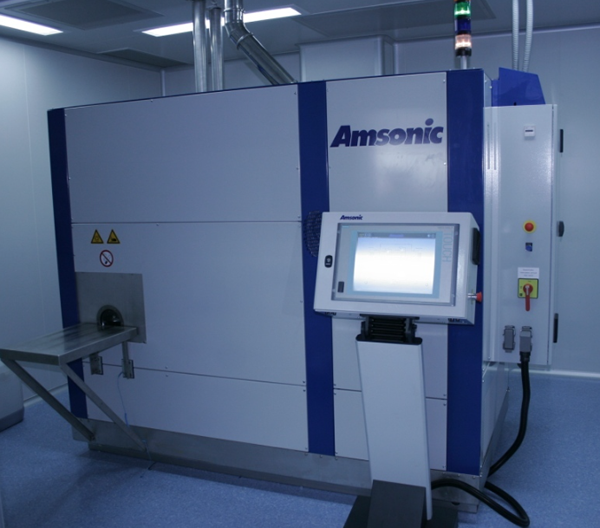

Amsonic 400R
The Amsonic 400R Series is a compact and powerful all-purpose single chamber cleaning unit used for the application of non-chlorinated solvents. Multistage cleaning with the following work steps: immerse cleaning, rinsing, vapour degreasing, vacuum drying.
The unit has a throughput of a maximum of 6 charges per hour each at 50 to 100 kg (depending on the type of unit). The cleaning and drying process are carried out under vacuum.
Detail
The advantage of the Amsonic 400R Series lies within the compact mode of construction and the closed cleaning system. The solvent is continuously regenerated by the integrated distillation. This guarantees a consistent cleaning quality even when working in three shifts.
Cleaning process
The basic cleaning process consists of the following sequence:
- Immerse cleaning with ultrasonic or spray cleaners and basket rotation
- Rinsing
- Vapour phase
- Vacuum drying
Options
- Ultrasonics
- Spray cleaning
- Immerse spray cleaning
- Filtration
User friendly control
- PC controller with online monitoring
- User interface with touch screen
- Integrated modem
Validation
Amsonic 400R Series units are serially equipped with a PC with which all processes can be documented, controlled and validated.
Automation
The cleaning unit can be completely automated (automatic loading/unloading) and integrated into a production process. The integrated reading station automatically identifies the cleaning program that has to be carried out.
Environmental friendliness/Safety
The Amsonic 400R Series parts cleaning unit corresponds to all European regulations concerning environment and safety.
Solvent type
- Class A3 hydrocarbons
- Modified alcohols
Application
- Intermediate cleaning
- Final cleaning
- Precision cleaning
Maintenance
- Low maintenance
- The control unit determines the maintenance intervals and informs the operator via message
- A built in modem enables remote maintenance
